LI-COR제품

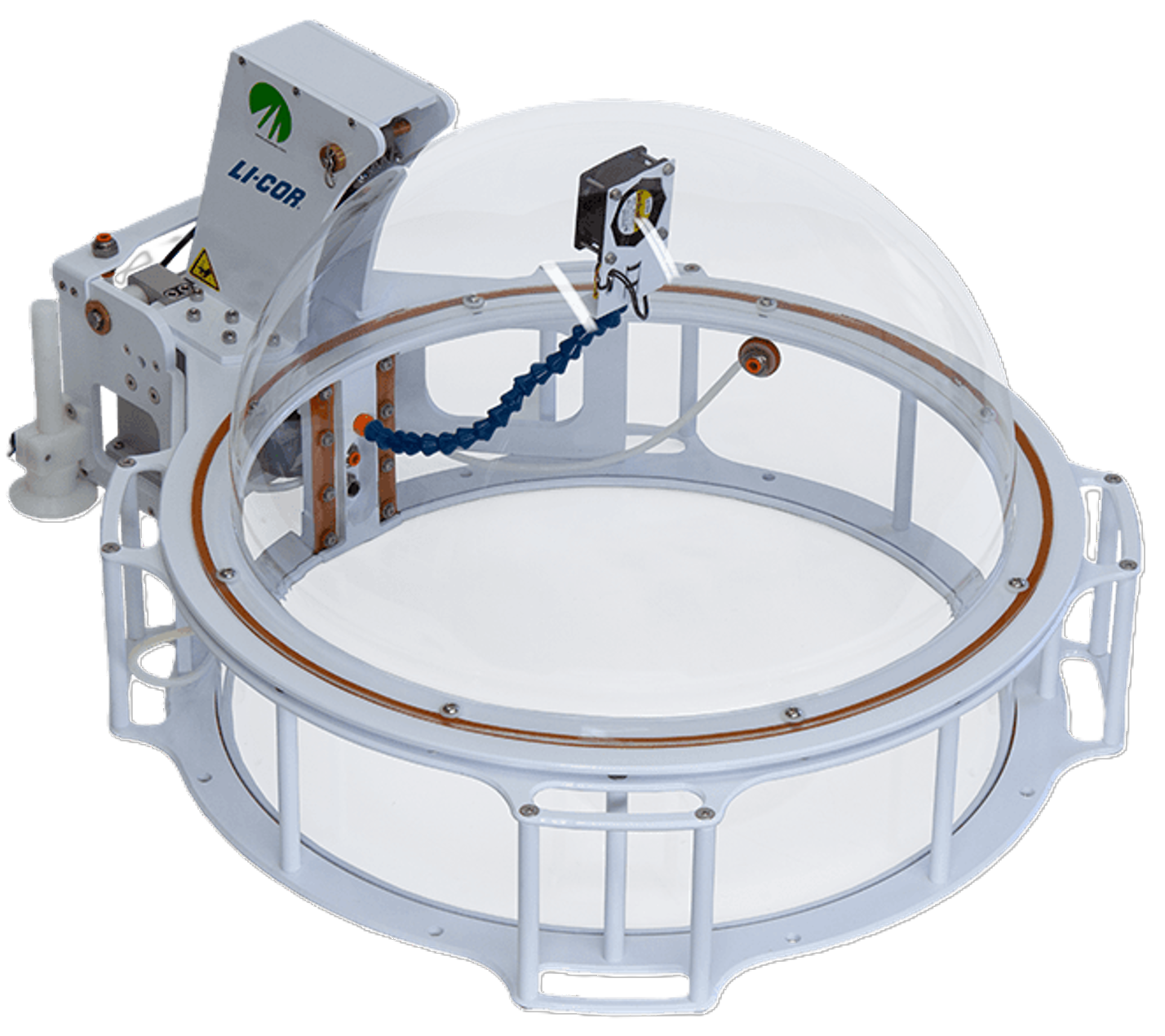

[토양CO2플럭스] CLEAR AUTOMATED CANOPY CHAMBER
| 제품분류 | 토양CO2플럭스 |
| 모델 : | 8200-105C |
| 특징 | |
| 직경 52cm, 높이 46cm의 큰 용량으로 토양 Flux 측정
챔버 확장 가능(30cm, 70cm, 최대 135cm) 식물의 광합성을 유지하며 측정 가능 SoilFluxPro™ 소프트웨어를 통한 Flux 데이터 처리 |
|
| 상세규격 | |
| DIMENSIONS
Chamber Volume (V): 0.072 m3 Exposed Soil Area (SA): 0.21 m2 Reach (chamber to analyzer): 30 m Overall Size (max. L x W x H): Closed 90 x 61 x 45 cm Open 90 x 61 x 92 cm Weight: 17 kg OPERATING ENVIRONMENT Temperature: 0 to 50 ºC Humidity: 0-100% RH non-condensing ENVIRONMENTAL SENSORS Air/Chamber Temperature: 0 to 50 ºC Barometric Pressure: 30 to 110 kPa POWER Operating Voltage: 24 V DC Operating Power (in motion): < 8 W (0.3 A) <br/>Operating Power (closed/open): < 1 W (0.04 A) <br/> SDI-12 COMMUNICATIONS INTERFACE Max Number of Devices: 10 Output Voltage: 12 VDC, 200 mA OTHER FEATURES Exterior: Transparent Collar Height: 10 cm, or 20 cm Base Extension: 30 cm, or 70 cm |
|
CLEAR AUTOMATED CANOPY CHAMBER
